While reading Performance Analysis and Tuning on Modern CPUs by Denis Bakhvalov, I had a surprising realization. Before this book, I had a completely incorrect understanding of what a thread is. Somewhere in my mental model of CPU microarchitecture, the “thread” was a muddy concept that vaguely correlated to a physical core, but it was more of an abstraction. I never interacted much with them because of Python’s Global Interpreter Lock (GIL), well-known for nulling any performance gain from SMT in compute-bound workflows, which was my main use case.

It turns out, understanding the “why” of threads requires looking at how a CPU executes instructions. Let’s start there.

Pipelining: The CPU’s Assembly Line

Basic 5-stage Pipeline Diagram

This should be a familiar diagram for anyone who has taken a course in Computer Architecture. The classic 5-stage pipeline, shown above, describes the simplified process every instruction goes through on a CPU core. To be clear, this diagram implies the core has one of everything: one unit for fetching, one for decoding, one for executing, and so on.

But reality is more complex. A single thread will inevitably face pipeline stalls. Reading from memory, for instance, can take hundreds of cycles, leaving all those expensive hardware units sitting idle. To mitigate this, modern CPUs use ‘Out-of-Order’ (OoO) execution, which allows the core to find other independent instructions to work on while the slow one completes.

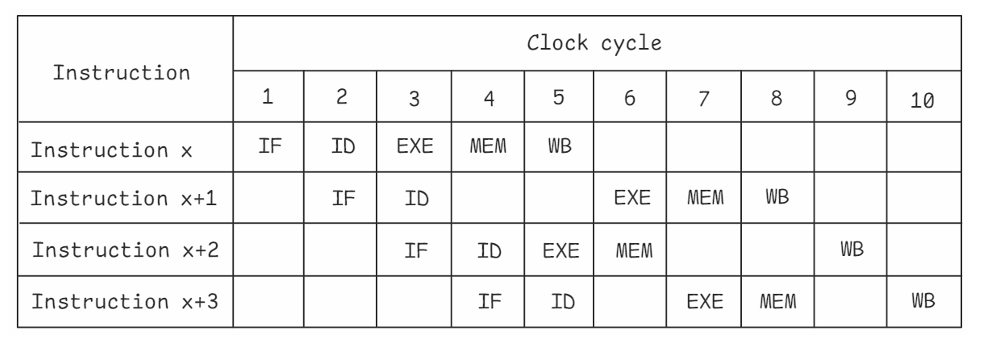

OOO Execution

Superscalar Architecture: Doing More at Once

Now here is the crucial insight. The architectural solution to stalls is what paves the way for multithreading. Modern CPUs can issue more than one instruction in the same clock cycle.

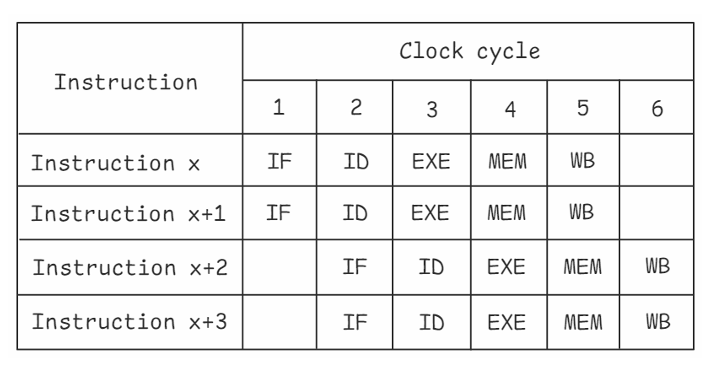

2-way Superscalar CPU

This is called Instruction-Level Parallelism (ILP). A typical modern CPU has an issue width of 6 to 9, meaning it’s equipped with multiple ALUs, FPUs, and Load/Store Units. The goal of all this hardware, combined with OoO execution and branch prediction, is to keep the core as saturated as possible with work from a single thread.

But even that is often not enough. This is the problem SMT was designed to solve. A single thread, no matter how optimized, will eventually stall waiting for data. Those stalls are wasted potential. By having a second thread ready to go, the core can hide the latency of the first. When Thread 1 stalls on a memory read, the scheduler can instantly feed instructions from Thread 2 into the pipeline, keeping the hardware busy.

So, What Is a Thread?

This brings us back to the original question. From the hardware’s perspective, a thread is simply an independent set of architectural states. It has its own program counter and its own set of registers. A single physical core with SMT contains a single, shared pool of execution units (multiple ALUs, FPUs, etc.) but duplicates the state-management hardware (like registers and program counters). This allows the core to track two different instruction streams at once, presenting itself to the operating system as two “logical cores.”

As you can see in the diagram below, threads do not map 1:1 to physical cores. They are a mechanism to better utilize the parallel hardware already built into a single core.

Threading on a 4-way Superscalar CPU

Practical Implications: When SMT Helps and Hurts

Understanding this architecture is not just fascinating, but it has a direct consequences for performance.

When is SMT a clear win? For workloads with high latency. If your code frequently waits for memory, disk I/O, or network responses, SMT provides a significant performance boost. While one thread is waiting, the other can be executing, effectively hiding the delay.

When can SMT hurt performance? For tasks that are purely compute-bound and can already keep the execution units saturated. If two threads are competing for the same ALU, they aren’t running in parallel, they are just getting in each other’s way. Note how I said earlier that the execution units are shared.

Worse, as you can see in the diagram’s second-to-last row, if Thread 1 is extremely heavy, it can hog ALL of the execution units. Furthermore, since threads on the same core share the L1 and L2 cache, two compute-heavy threads can end up fighting for cache space. This causes “cache thrashing,” where the threads repeatedly evict each other’s data from the cache, forcing slow reads from main memory and significantly hurting performance. This is why SMT is sometimes disabled for HPC tasks. However, it really depends on your application and your specific code.

Conclusion

It’s important to keep the CPU’s architecture in mind when writing multithreaded applications. Multicore programming is conceptually straightforward. More cores means more parallel work. But multithreading is more nuanced. It’s a latency-hiding technique, not a simple scalable model for parallel execution. By understanding when to use it, you can avoid performance pitfalls and write much more efficient code.

References

  • Performance Analysis and Tuning on Modern CPUs - Denis Bakhvalov.

Thanks for reading, and let me know if there are any errors!

Edit (August 6, 2025): I recently came across an interesting SMT related post on LinkedIn by Sunil Shenoy, a Senior VP with over two decades of experience at Intel. His musing on a recent comment from Intel’s CEO provided a valuable, high-level perspective on how a feature like SMT is viewed not just by architects, but by customers and business leaders. I thought it might be valuable as a postscript to this article to reflect on SMT in a larger, modern context.

I attempted to summarize this discussion in the following 3 points:

  1. The performance gain from SMT is measurable and real. Lewis Carroll (AMD) pointed out that while some workloads see no benefit, others “can see north of 50% improvement in throughput per core”. Rahul Saxena (Intel), reframed the debate: the question isn’t just SMT-on vs. SMT-off. The real architectural question is comparing an SMT-enabled core to a hypothetical single-threaded (ST) core designed “using the same area, cost, and power budgets.” This is the true engineering trade-off: is the silicon budget for SMT better spent elsewhere? This reminds me of why hyperthreading is often disabled for HPC tasks. A study on multithreaded workloads found that the overhead for OpenMP synchronization and loop scheduling constructs was often an order of magnitude larger when hyperthreading was enabled compared to when it was turned off.

  2. How customers pay for compute heavily influences SMT’s role. As Samba Ba mentions, “SMT allows CSP (Cloud Service Providers) to double the number of cores (VCPUs) they sell.” This creates a distinction between a full-performance physical core and a vCPU (a logical thread), which may have lower, more variable performance due to resource sharing. This leads directly to pricing strategy. An ideal scenario, as Carroll suggests, is one where “you would pay for a core, and have full control over how you use that core (one thread or two).” I found it interesting because I’ve never made use of hyperthreading on cloud compute, but I’d be very hesitant to pay more for a vCPU if my workload would be compute-bound, cache thrashing and causing negative per-core performance with SMT-on, so I’d prefer paying for physical cores without even thinking of the cost model in terms of vCPU. In fact, if I was being charged extra just for my core to have optional hyperthreading, I’d rather not have it at all. As the previous point hints, if that could lead to a better single-threaded core in terms of resource usage and possibly performance (depending on the usage), it begs the question- why do so many CPU have hyperthreading by default? Although, as Samba Ba discussed, future trends do seem to be changing. Intel’s Sierra Forest can only support one thread per-core, its architecture design aiming to achieve ultra-high core count for greater compute density for cloud-native efficient computing (E-cores). The upcoming Diamond Rapid is also rumoured to not support SMT despite likely being performance focused P-cores, signaling a potential industry-wide shift in design priorities.

  3. The security risks of SMT, particularly side-channel vulnerabilities “should come down to each customer’s risk tolerance” when considering adoption. It is a factor in a cost-benefit analysis, not to automatically disquality SMT, but I wonder what people working on sensitive data think. Is it enough to improve per-core performance at the potential risk of a security breach?

Ultimately, this discussion reveals that SMT is far more than a technique to improve resource usage or (v)CPU count. It’s an essential feature in chip design, balancing measurable performance gains against silicon area, power consumption, security risks, and even the business models of the cloud. I included this postscript because it’s a powerful reminder that market adoption hinges on the entire context of a computing architecture, not just its technical capabilities. While SMT offers proven performance benefits in many scenarios, the clear sentiment from these industry leaders is that we should be prepared for a future where high-end server CPUs may omit it entirely in favor of different design trade-offs.
